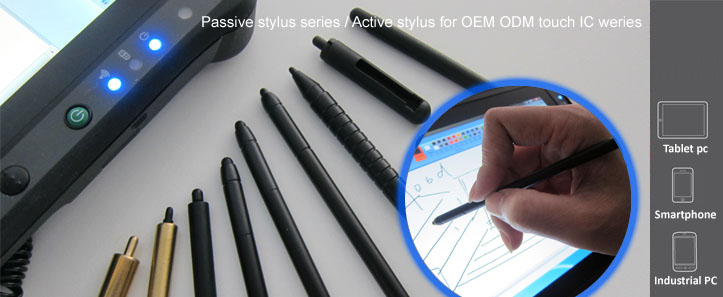

 2~4 mm The Fine Point Passive Stylus series (AS801 series)


Unique fine point stylus pen design for small pitch tablets!
The passive fine tip stylus pen series is for OEM/ODM project – 2~3.5 mm pitch capacitive touch screen. We need our capacitive touch IC customers provide their exclusive design for the production of this stylus series because it is designed for customer's exclusive capacitive touch screen. It cannot compatible with iPad, iPhone(5.5 mm pitch capacitive touch screen), because it is designed for customer's exclusive capacitive touch screen. If you're looking for product design & development through to manufacture (or just a part of the process) we have the facilities, knowledge and experience to help. This experience leads to cross fertilization of ideas, materials and manufacturing methods.







Feature
* Works on OEM/ODM 2~4 mm pitch capacitive touch screen series.
* OEM customer's Touch IC standards will also apply to our multi conductive tip material.
* Unique fine point pen tip choice- Super rubber tip, Conductive plastic tip, Conductive nylon tip, Conductive PET tip.
* Precision handwriting, Just like a high-quality ball-point pen.
* High Precision, scratch-resistant design and develop.
* Easy to exchange tip for touch stylus pen design.
* Fine point tip, the most natural way to write and paint.
* Mechanism design for total quality management.

Certificate
• Warranty/RoHs Ready.
• Patent for special conductive material.

























   AS801 series







  2 mm Special Nylon nip
(AS801n)
Tip Conductive
<1000 ohm in 1 cm distance
Pen Sensing
>Passive pen level(System: for customer's capacitive IC)
Tip Hardness
120D≧pen≧80D
Reliablity Requirement
Tip Durability allowed to stand at 300g, 300mm/sec for 3KM.
  2~2.8 mm Special PET nip
(AS801e)
Tip Conductive
<1000 ohm in 1 cm distance
Pen Sensing
>Passive pen level(System: for customer's capacitive IC)
Tip Hardness
120D≧pen≧80D
Reliablity Requirement
Tip Durability allowed to stand at 300g, 300mm/sec for 3KM.
  3.5 mm Special Plastic nip
(AS801p)
Tip Conductive
<2000 ohm in 1 cm distance
Pen Sensing
>Passive pen level(System: for customer's capacitive IC)
Tip Hardness
120D≧pen≧80D
Reliablity Requirement
Tip Durability allowed to stand at 300g, 300mm/sec for 3KM.



  2~4 mm Supper Rubber nip
(AS801s)
Tip Conductive
<2000 ohm in 1 cm distance
Pen Sensing
>Passive pen level(System: for customer's capacitive IC)
Tip Hardness
80D>pen>50D
Reliablity Requirement
Tip Durability allowed to stand at 100g, 300mm/sec for 3KM.
  4 mm Rubber nip
(AS801r)
Tip Conductive
<2000 ohm in 1 cm distance
Pen Sensing
>Passive pen level(System: for customer's capacitive IC)
Tip Hardness
80D>pen>50D
Reliablity Requirement
Tip Durability allowed to stand at 200g, 300mm/sec for 3KM.
